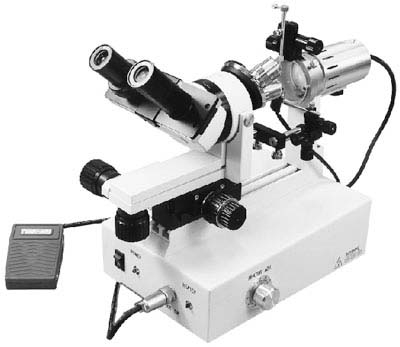

MF-900 日本成茂锻烧仪

Multiple functions for making different kinds of microtools.

Reflecting Narishige's long practical experience, the MF-900 offers a wide range of functions for making many different kinds of microtools by processing microneedle tips. An easyto-use manipulator is provided for operating the heater and pipette, and the microscope is operated three-dimensionally with control close to the operator's hand. Separate rotation mechanisms for vertical and horizontal movement allow the pipette to be approached at any angle, while a special device in the heater section can form it into any required shape. As well as conventional scales, a protractor to measure angles is provided on the microscope eyepiece. With the heater turned ON/OFF via a foot switch, and the heater section integrated into the microscope body, all control actions are performed easily and precisely close to the operator's hand.

Specification:

Accessories included		MF-900F Foot Switch
		AC Power Cord
		Dedicated Pipette Holder
		Allen Wrench
		Spare Heater
		Spare Lamp
		Silicone Rubber Gasket
Movement range	Heater manipulator	X14mm, Y14mm, Z14mm
	Pipette manipulator	X12mm, Z28mm
	Microscope	X approx. 7mm, Y30mm, Z approx. 8mm
Magnifications		50x/100x (Eyepiece 10x, Objective Lenses 5x, 10x)
Glass capillary		1mm
Power Source		AC100 (±5%), 50/60Hz
		AC120 (±5%), 50/60Hz
		AC220 (±5%), 50/60Hz
		AC240 (±5%), 50/60Hz
Power consumption		Approx. 35W
Dimensions/Weight		W200 × D350 × H300mm, 6.1kg

Optional accessories:

Model	Product	Description
MF-OP	Optional lens for MF-900	35x objective lens
		15x eyepiece with micrometer
		15x eyepiece without micrometer
MF-OPA	Optional lens for MF-900	35x objective lens
MF-OPB	Optional lens for MF-900	15x eyepiece without micrometer
MF-OPC	Optional lens for MF-900	15x eyepiece with micrometer

Consumables:

Model	Product	Description
PT-B	Platinum wire heater	150μm × 300mm
MF-900L3	Lamp
