    OM BORESCOPE (英文版本)

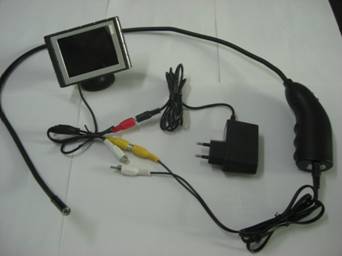

    The OM borescope is an handheld video endoscope system with robust and flexible insertion tube. Enhanced with 3 white LED lights on the tip of the flexible tube and a high resolution camera, the OM Scope can capture high quality videos (AVI) with rich colour throughout a large dynamic range.

    OM borescope is used for inspection of areas generally inaccessible to the naked eye. Used for inspection of engines, transmissions, gear train components, inside small cavities, inside storage tanks, plumbing, cracks, behind walls and plenty more. Used by inspectors, law enforcement, mechanics, plumbers and more.

    Features:

    High resolution color camera
    Resolution 320 x 240 pixels
    3.5" full color viewing monitor
    Highly detailed imaging
    Glare-free close-up and wide angle field of view 100 degree
    Video out for optional recording (RCA NTSC Signal)
    Dark penetrating high output LED illumination
    Quality optics provides a larger image for comfortable viewing
    Distal tip has (3) service free integrated solid state LED lamps (never need servicing for the life of the scope)
    Plastic handle and stainless still housing and HDPE shaft coating are abrasion resistant and impervious to all major chemical and petroleum derivatives
    14 hrs operation on 4 AAA batteries (included)
    Bending radius down to 1.9" (3.8" diameter)
    1/4" to infinity viewing

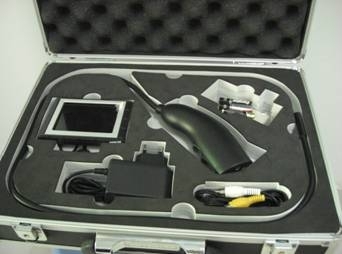

    Comes with:

    Padded poly pro storage case
    Batteries (4) AAA alkaline
    Operating Instructions
    1 Year Warranty

    Specifications:

    Cable length 31" (800mm)
    Distal tip diameter 0.35" (9mm)
    Monitor type 3.5" LCD full color viewing monitor
    Resolution 320 x 240 pixels
    Video out port RCA jack - NTSC signal
    Cable length 1200mm
    Shaft material stainless still with polyethylene (HDPE) surface coating
    Housing material plastic
    Light source (3) high light white LED's in tip
    Viewing angle 100° (without clip-on mirror)
    Viewing distance 1/4" to infinity
    Minimum bending radius 1.9" (3.8" diameter)
    Power (4) AAA batteries (held within a battery pack inside the handle)
    Battery life approximately 14 hours

    Please do not hesitate to contact with us for more detailed information.
