参数：
1、适用于小鼠电生理实验.
2、改良型的口夹,鼻夹和耳棒.可纵向和垂直调节
3、口夹,鼻夹和耳棒系统拆卸灵活,可单独清洗.也可与其它定位仪底座装配使用
4、具有直径最大为18.7毫米的操作臂夹套,兼容性极强
5、底座的尺寸: 长400 mm ×宽300 mm × 高110mm
6、净重量:9.2公斤
7、调节范围:水平粗调60mm，垂直粗调50mm, 垂直精调6--10mm, 精度10um
8、含SM-15 及EB-5N 附件，L型架可调节高度
配置: 双支架底座1个;推进器1个;小鼠定位夹1个
SR-6M Stereotaxic Instruments (for Mice)
Specially designed for mice, fixing the head firmly.
Based on our long-established SR series, this stereotaxic instrument is designed specifically for mice and is equipped with various functions to fix the head more firmly. The auxiliary ear bar allows clamping actions to be smoothly manipulated with just one hand, letting the operator fix the external auditory canal and check the fixation firmness with the fingertips. The mouth and nose fixing clamp features a slim, compact design appropriate for the mouth of a small mouse, making it easy to confirm that the teeth are fixed firmly. In addition, the instrument allows easy back/forward and up/down position adjustment. An 18.7mm AP frame bar is provided, to which many different types of accessories can be attached besides the attached micromanipulator SM-15. The SR-5M has one AP frame bar, while the SR-6M has two.
Basic model (excluding SM-15) also available. When using these instruments with rats, use the separate RA-6N as well.

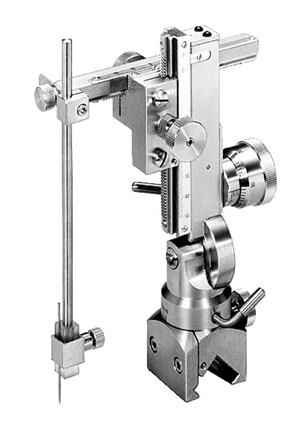

SM-15
Stereotaxic Micromanipulator
Compact, versatile and popular micromanipulator.
This is the most popular micromanipulator for stereotaxic instruments, and is attached to AP bar of the instrument when in use. Coarse movement units with a long working range is attached to both the X-axis and the Z-axis; the latter also has fine movement units attached. The fine movement handle is positioned for ease of use, and jitters from handle operations are not transmitted to the microelectrode tips. Vertical and horizontal rotation mechanisms are both equipped, enabling approaches from any required tilting angle. Easy-to-use scales are provided wherever necessary, for operations following a brain chart. This manipulator has a compact yet rigid design, and can be operated with excellent stability in confined spaces.
Specification
| Accessory included |
Allen Wrench |
| Movement range |
Coarse |
X60mm, Z50mm |
| Fine |
Z8mm |
| Full rotation of knob: 500μm |
| Minimum graduation: 10μm |
| Dimensions/Weight |
W120 × D75 × H180mm, 1.25kg |
AP frame bar size
Narishige produces world standard 18.7mm square shape AP frame bar. Please be advised when mounting on your existent frames since our stereotaxic manipulators are tailored for 18.7mm AP frame bar.
Specification
| Accessories included |
SM-15 Stereotaxic Micromanipulator |
| EB-5N Auxiliary Ear Bar for Mice |
| Dimensions (base) |
W400 × D300 × H110mm |
| Total weight |
9.2kg |

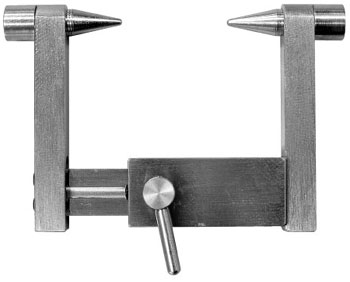

EB-5N
Auxiliary Ear Bar for Mice
Used with SR series stereotaxic instruments, this auxiliary ear bar is attached before fixing the mouse on to the fixing clamp, making fixation simple. Even if the animal is detached and the re-fixed, repeated fixation is quick and easy. Smooth, uncomplicated clamping with one hand is much easier than with conventional models.
Specification
| Dimensions/Weight |
W48 - 62 × D37 × H10mm, 35g |
